Birth of a
Bowl
|
|
 |
|

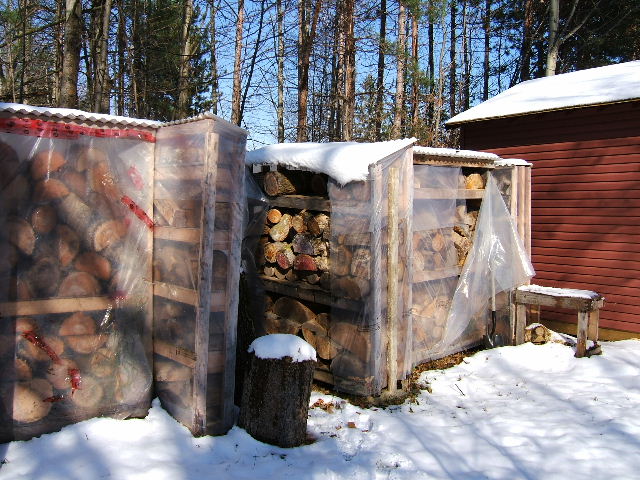

Cut and waxed log ends are stored on racks waiting to be
rough-turned into bowls. |
|
|
|
|
|
 |
|

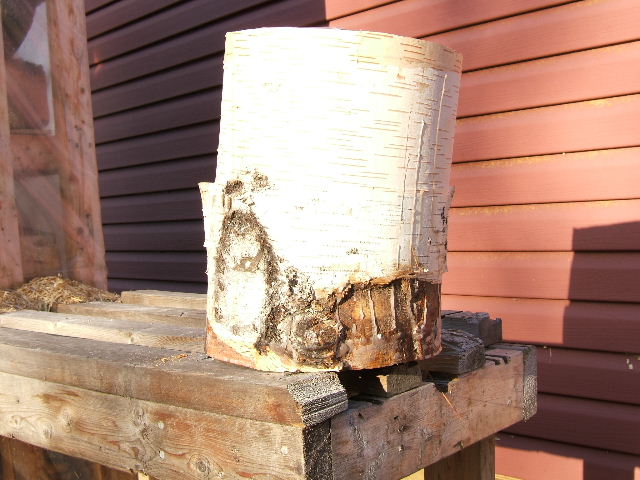

Two bowls hidden in a log. Ends are waxed to stop
cracking as the wood is drying. |
|
|
|
|
|
 |
|

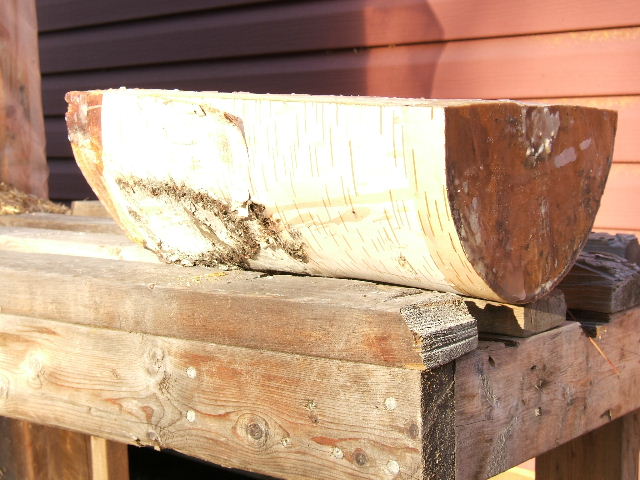

The log is sliced in half to prepare it for the
rough-turning process. |
|
|
|
|
|
 |
|

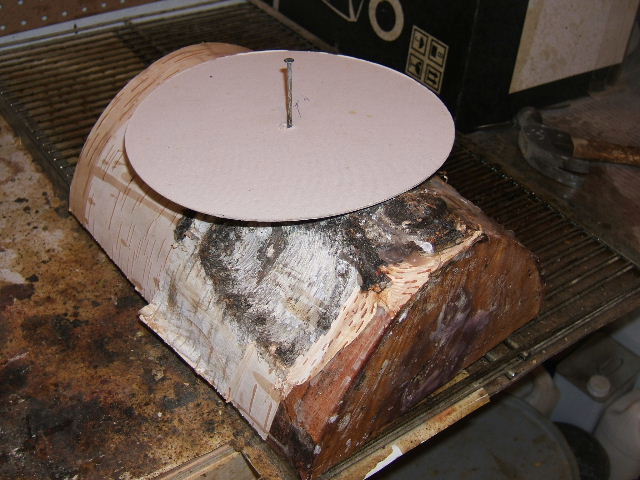

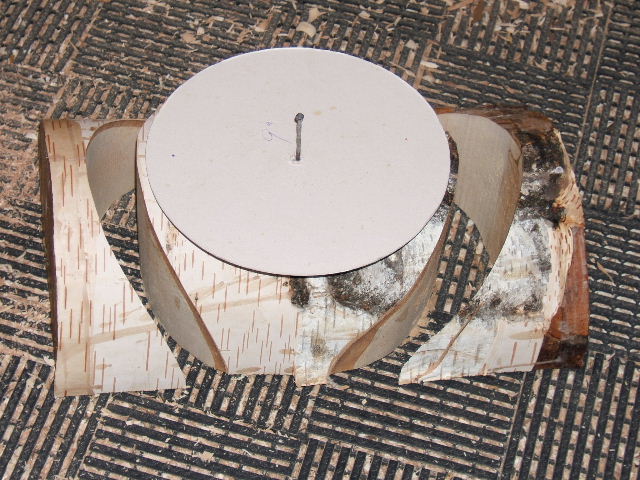

A 9" disk template is used to size the rough bowl that
will be turned from the log. |
|
|
|
|
|
 |
|
Waste is removed with a band saw. |
|
|
|
|
|
 |
|

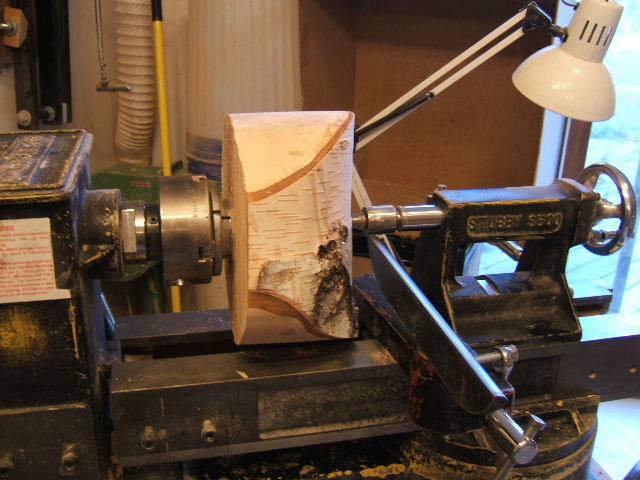

The remaining log is mounted on a lathe awaiting outside
shaping. |
|
|
|
|
|
 |
|

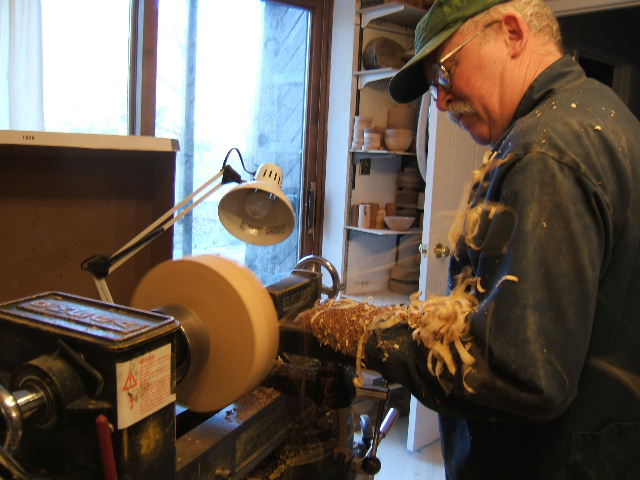

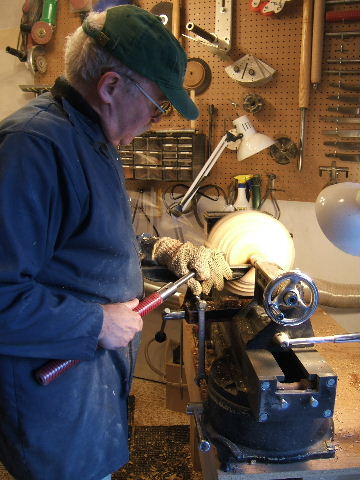

The outside of the bowl is shaped and the tenon, which
will later hold the bowl on the chuck while the inside is turned, is formed. |
|
|
|
|
|
 |
|
A view of the outside and tenon-turning process from
another angle. |
|
|
|
|
|
 |
|

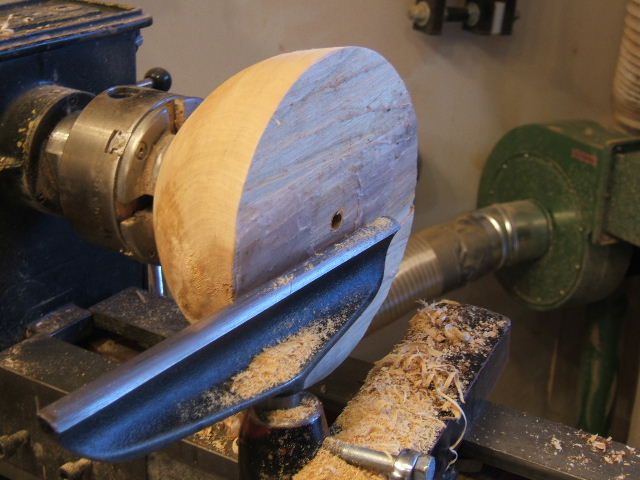

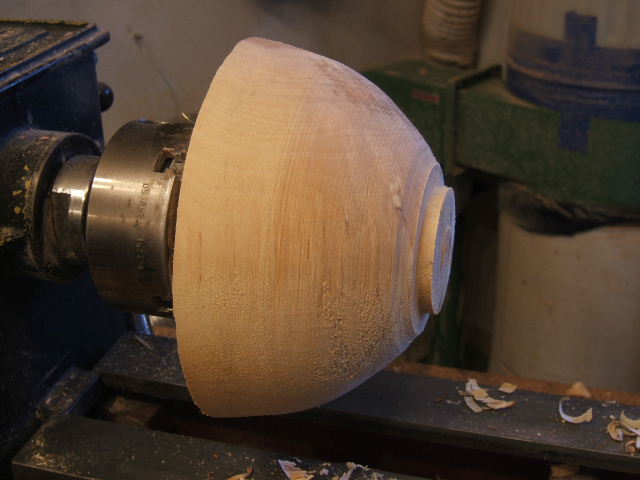

Waiting to be reversed in order to hollow out the centre
of the bowl. |
|
|
|
|
|
 |
|

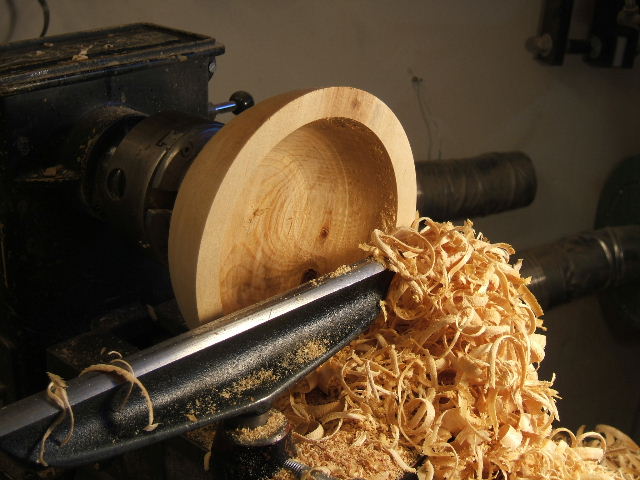

The rough bowl is now in position for turning out the
centre. |
|
|
|
|
|
 |
|
The rough-turning process is now complete. |
|
|
|
|
|
 |
|

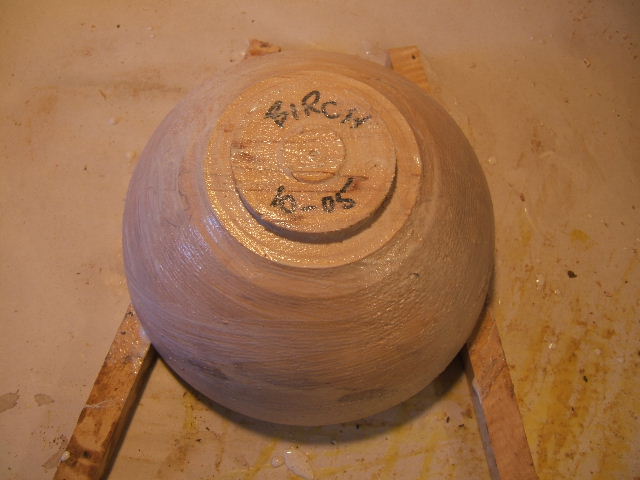

The outside is waxed and the bowl labelled with date and
type of wood. |
|
|
|
|
|
 |
|

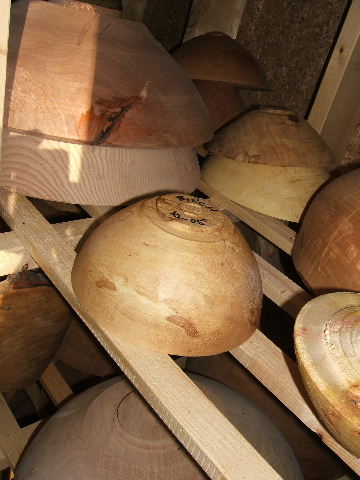

The waxed rough-turned bowl sits on a drying rack in the
protected shed for 6 to 9 months after which it will be fine-turned and
finished into its final form. |
|
|
|
|
|
 |
|
Ten months later the bowl is returned to the lathe. |
|
|
|
|
|
 |
|

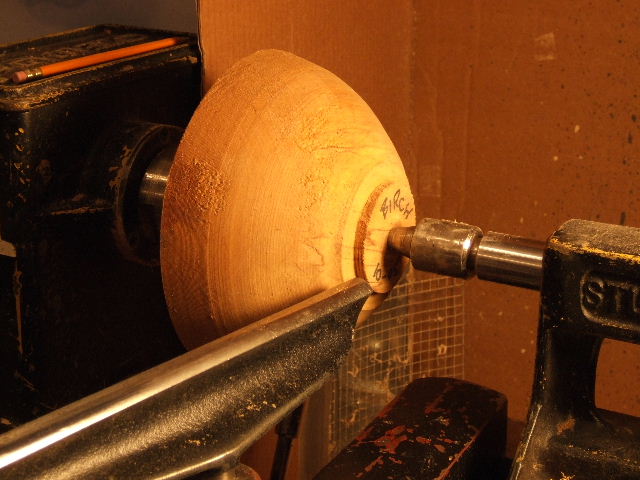

Having gone oval during the drying process the tenon is
'trued up' to hold the bowl on the lathe. |
|
|
|
|
|
 |
|

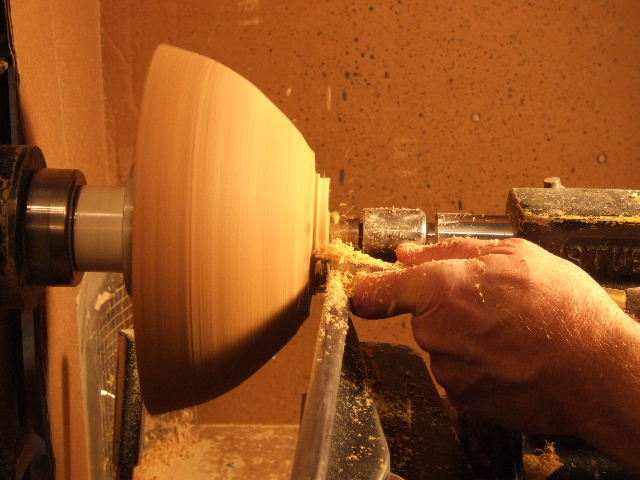

The outside of the bowl is returned in stages to keep the
maximum outside diameter. |
|
|
|
|
|
 |
|

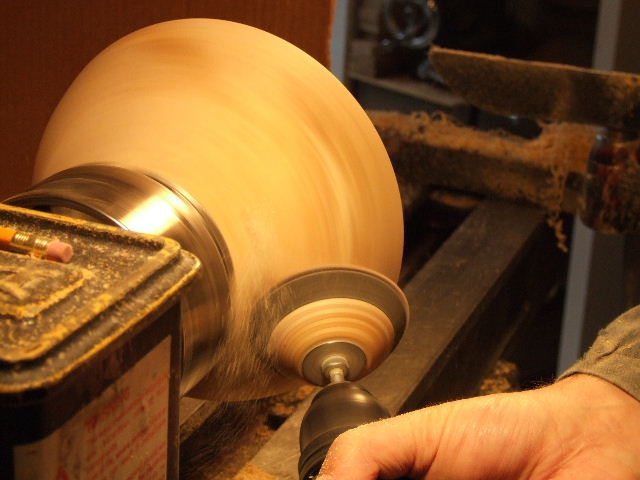

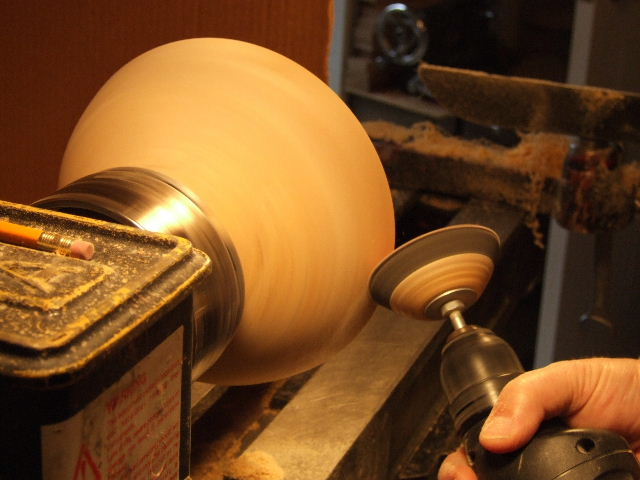

Next the bowl is power sanded from 80 grit..... |
|
|
|
|
|
 |
|
.....to 400 grit to get a smooth even finish. |
|
|
|
|
|
 |
|

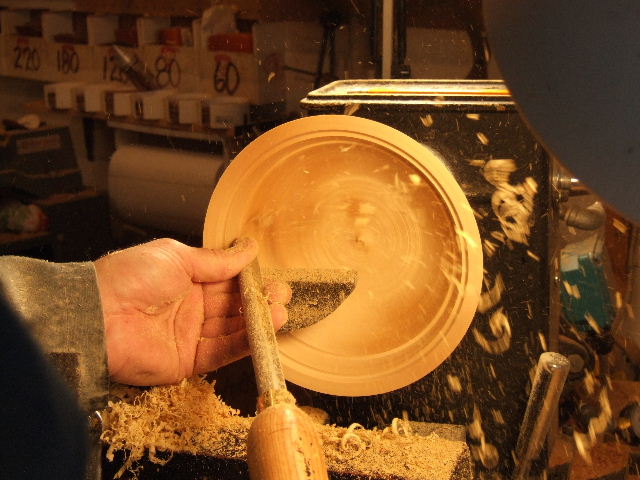

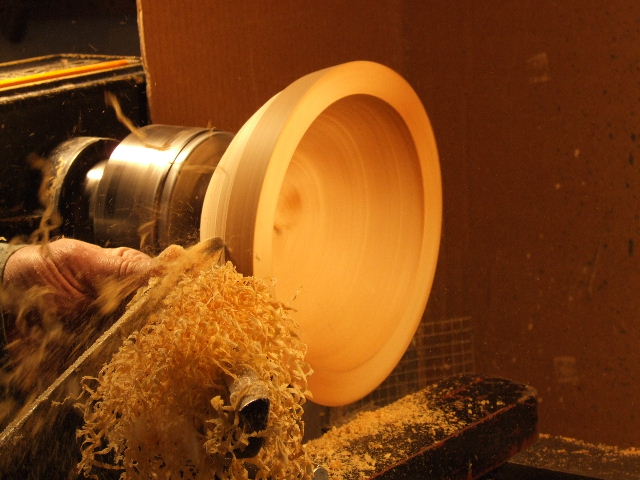

Now it is time to turn the inside of the bowl. This
is done in stages working from the rim to the bottom. |
|
|
|
|
|
 |
|

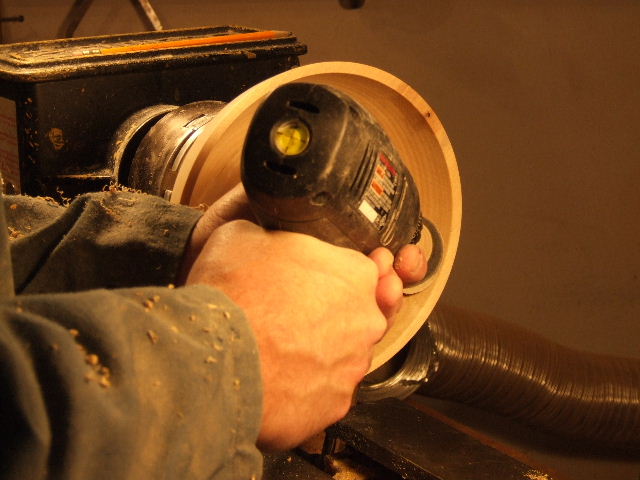

The inside is sanded the same way as the outside. |
|
|
|
|
|
 |
|

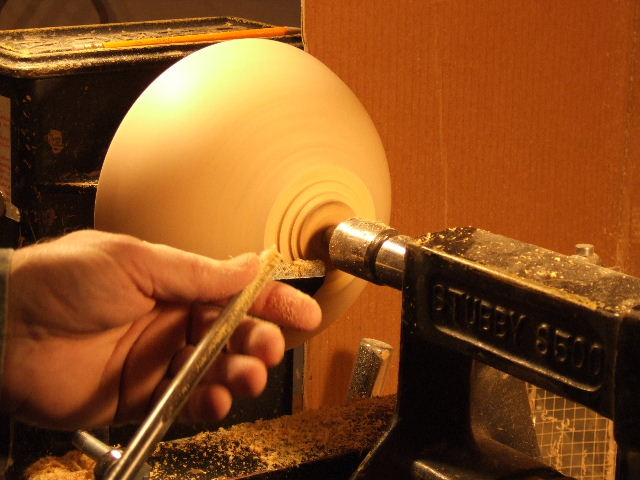

Reversed onto a vacuum pad the tenon is turned off with
the tailstock in place for support. |
|
|
|
|
|
 |
|

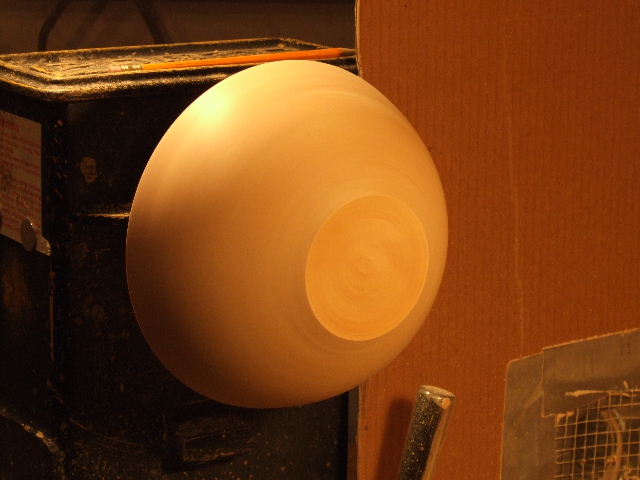

With the help of the vacuum chuck the bottom is sanded to
a finish. |
|
|
|
|
|
 |
|

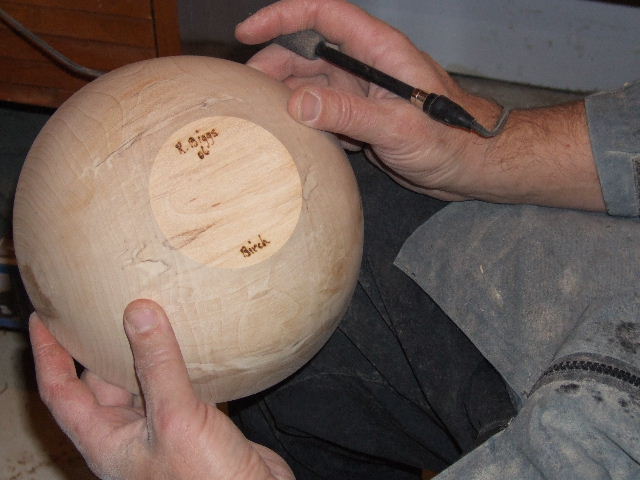

Off the lathe the bottom of the bowl is burned with my
name and the type of wood. |
|
|
|
|
|
 |
|

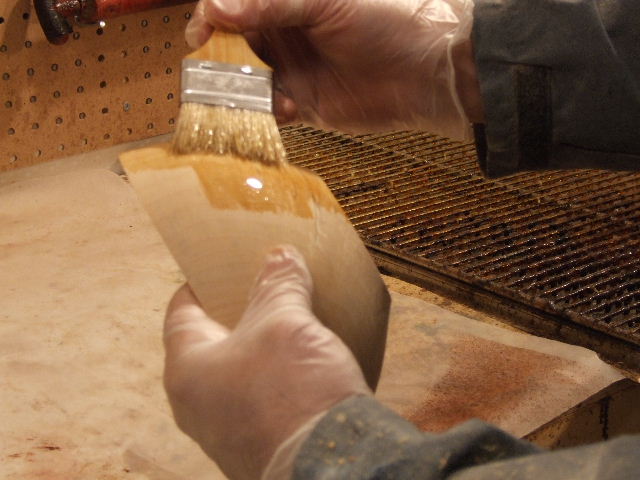

Finally the bowl is coated with five or six coats of a
food-safe salad bowl finish, hand-sanded with 600 grit between coats and
then buffed to a sheen and ready for sale. |
|
|
|
|
|
